Quickstart: Hierarchical TreeDataGrid

This quickstart builds a complete hierarchical TreeDataGrid with expandable rows.

Goal

Create a parent/child dataset where each row can expand to show children.

1. Data Model

Create Person.cs:

using System.Collections.ObjectModel;

public class Person
{
    public string? FirstName { get; set; }
    public string? LastName { get; set; }
    public int Age { get; set; }
    public ObservableCollection<Person> Children { get; } = new();
}

2. View Model with Hierarchical Source

Create MainWindowViewModel.cs:

using System.Collections.ObjectModel;
using Avalonia.Controls;
using Avalonia.Controls.Models.TreeDataGrid;

public class MainWindowViewModel
{
    private readonly ObservableCollection<Person> _people = new()
    {
        new Person
        {
            FirstName = "Eleanor",
            LastName = "Pope",
            Age = 32,
            Children =
            {
                new Person { FirstName = "Marcel", LastName = "Gutierrez", Age = 4 },
            }
        },
        new Person
        {
            FirstName = "Jeremy",
            LastName = "Navarro",
            Age = 74,
            Children =
            {
                new Person
                {
                    FirstName = "Jane",
                    LastName = "Navarro",
                    Age = 42,
                    Children =
                    {
                        new Person { FirstName = "Lailah", LastName = "Velazquez", Age = 16 },
                    }
                }
            }
        },
    };

    public MainWindowViewModel()
    {
        Source = new HierarchicalTreeDataGridSource<Person>(_people)
        {
            Columns =
            {
                new HierarchicalExpanderColumn<Person>(
                    new TextColumn<Person, string>("First Name", x => x.FirstName),
                    x => x.Children),
                new TextColumn<Person, string>("Last Name", x => x.LastName),
                new TextColumn<Person, int>("Age", x => x.Age),
            },
        };

        // Optional: expand first root row at startup.
        Source.Expand(new IndexPath(0));
    }

    public HierarchicalTreeDataGridSource<Person> Source { get; }
}

Important:

Hierarchical sources require exactly one expander column.
HierarchicalExpanderColumn<TModel> wraps an inner column and child selector.

3. Bind in XAML

<Window xmlns="https://github.com/avaloniaui"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        x:Class="AvaloniaApplication.MainWindow">
  <TreeDataGrid Source="{Binding Source}" />
</Window>

4. Set DataContext

public partial class MainWindow : Window
{
    public MainWindow()
    {
        InitializeComponent();
        DataContext = new MainWindowViewModel();
    }
}

5. Run

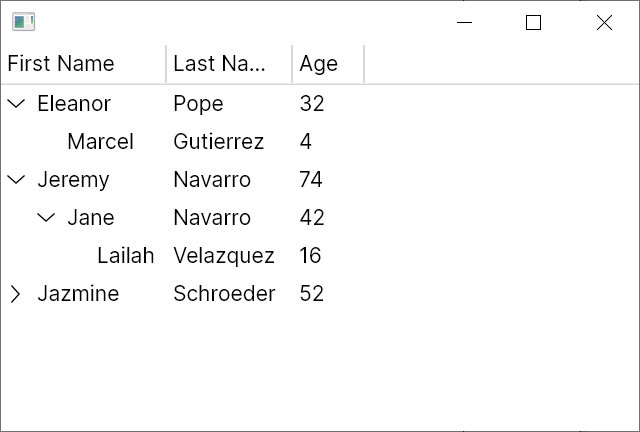

Verify expansion behavior:

Simple TreeDataGrid

What You Have Now

A bound hierarchical source
Expand/collapse row behavior
Multiple columns in hierarchical mode

Common Next Steps

Handle expansion events (RowExpanding, RowExpanded)
Programmatically expand/collapse ranges
Add custom cell templates

Troubleshooting

Feature behavior differs from expectations Cause: one or more options in this scenario are configured differently (source type, column options, sort/selection/edit state). Fix: compare your setup with the snippet in this article and verify runtime values on Source, Columns, and Selection.
Data changes are not visible in UI Cause: model or collection notifications are missing, or a replaced collection/source is not re-bound. Fix: ensure INotifyPropertyChanged/INotifyCollectionChanged flow is active and reassign Source after replacing underlying collections.
